Bergamont E-Horizon SUV FS 10

Modelo : 423637

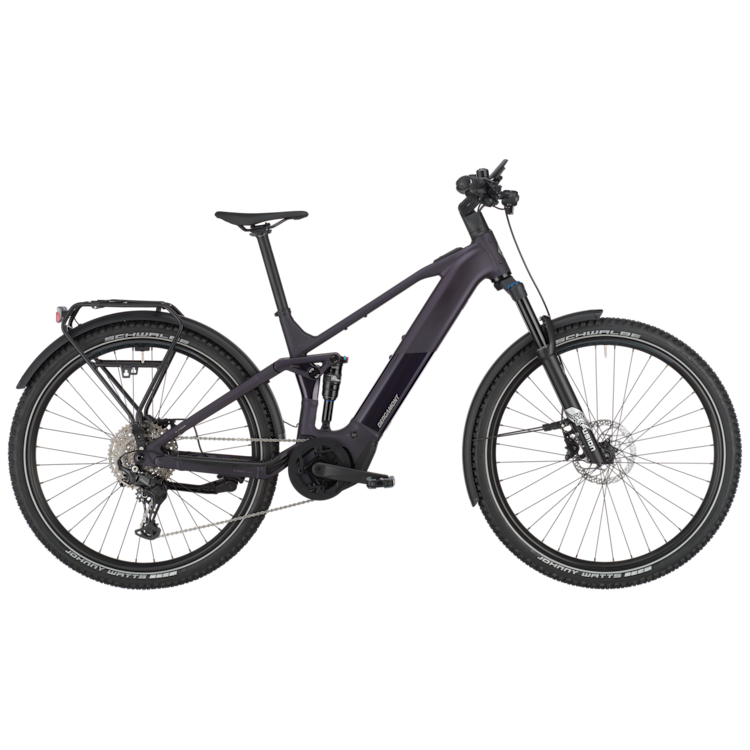

Bergamont E-Horizon SUV FS 10
Bergamont E-Horizon SUV FS 10 Bergamont E-Horizon SUV FS 10 Bergamont E-Horizon SUV FS 10

Características Principales

  • Ultra lightweight aluminum frame with 130 mm travel
  • X-Fusion suspension fork with 130 mm travel
  • Shimano Cues 1x10-speed drivetrain
  • Bosch Smart System with powerful Performance Line CX motor
  • Powerful Shimano hydraulic disc brakes
  • 28" Schwalbe Johnny Watts LR tires
  • 160 kg max. system weight
  • LED lighting system front and rear with brake light function

1. Color : black/purple

black/purple baltic blue

2. Talla

Guía de tallas
Encuentra un distribuidor
Especificaciones

  • E-MTB genes spliced with Trekking amenities: The Bergamont E-Horizon SUV FS shares its frame with the Bergamont E-Revox FS range of e-mountain bikes. A dual suspension setup with 130 mm of travel ensures a very comfortable and less fatiguing ride. The suspension also improves control over your bike even in adverse riding conditions on paved or gravel roads, which results in a safer ride, especially over longer distances.

    The Bosch Performance Line CX electric drive system offers powerful and long-lasting support, giving you the freedom to explore beyond your usual routes and prepare for new adventures. The end of the road is definitely not the end of your ride with the Bergamont E-Horizon SUV FS. To complete the package the E-Horizon SUV FS has an increased maximum system weight of 160 kg and is conveniently equipped with LED lights, fenders, a rear carrier and a kickstand.

    The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.


    condición de uso 2

  • Cuadro

    28", ultra lite AL-6061 tubing, PowerTube battery, 130 mm travel

  • Horquilla

    X-Fusion MIG 34 Boost, 130 mm, 15x110 mm axle

  • Amortiguador trasero

    X-Fusion O2 Pro RLX, Trunnion, compression-, rebound. Adj., 130 mm

  • Motor eléctrico

    Bosch Smart System, Performance Line CX, 250 W, 36 V, max. 25 km/h

  • Batería

    Bosch PowerTube, 36 V Li Ion, 800 Wh

  • Pantalla

    Bosch Intuvia 100 / Mini Remote / TT System Controller

  • Cargador

    Bosch Standard Charger, 4A

  • Desviador trasero

    Shimano Cues, RD-U6000, Shadow Plus

  • Palancas de cambio

    Shimano Cues, SL-U6000, 1x10-speed, rapidfire plus-shifter

  • Bielas

    FSA CK-220, 170 mm, 38t

  • Pedalier

    Bosch, Isis

  • Cadena

    Shimano Linkglide, CN-LG500

  • Cassette

    Shimano Cues, CS-LG400-10, 11-48t

  • Palancas de freno

    Shimano BL-M4100, hydraulic disc brake

  • Frenos

    Front: Shimano BR-MT420, hydraulic disc brake, 4-piston
    Rear: Shimano BR-MT410, hydraulic disc brake

  • Disco de freno

    Front: Shimano SM-RT30, 203 mm
    Rear: Shimano SM-RT30, 180 mm

  • Manillar

    BGM Pro, riserbar, backsweep: 15°, rise: 5 mm

  • Potencia

    Satori Python, adjustable

  • Tija de sillín

    BGM Pro

  • Sillín

    Syncros Tofino 2.5

  • Juego de dirección

    Acros, A-Headset, semi-integrated, tapered, with integrated cable routing

  • Buje delantero

    Shimano HB-TC500-B, centerlock, disc, 15x110 mm axle

  • Buje trasero

    Shimano FH-TC500, centerlock, disc, 12x148 mm axle

  • Radios

    Sapim Leader

  • Llantas bicicleta

    Syncros MD30, disc, eyelets, tubeless ready

  • Neumático delantero

    Schwalbe Johnny Watts LR, Performance, Addix, reflective stripe, 60-622
    Tube: Schwalbe SV19

  • Neumático trasero

    Schwalbe Johnny Watts LR, Performance, Addix, reflective stripe, 60-622
    Tube: Schwalbe SV19

  • Luces

    Front: Litemove SEC 150, 150 Lux, LED
    Rear: B&M Toplight Line Sensor, LED, with brake light function

  • Portaequipajes

    Racktime / BGM, Snapit 2.0 System

  • Pedales

    Trekking alloy

  • Accesorios

    Kickstand: Syncros U-mount

  • Peso en kg (aprox.)

    29,2

  • Guardabarros

    Curana Orbit, with stainless stays

  • Puños

    BGM Comfort, Ergo, double density, lock-on

  • Peso total (máximo)

    160,0 kg
    The overall weight includes the bike, the rider, the equipment and possible additional luggage.
Uso
No Radar Chart Available Currently
Geometría

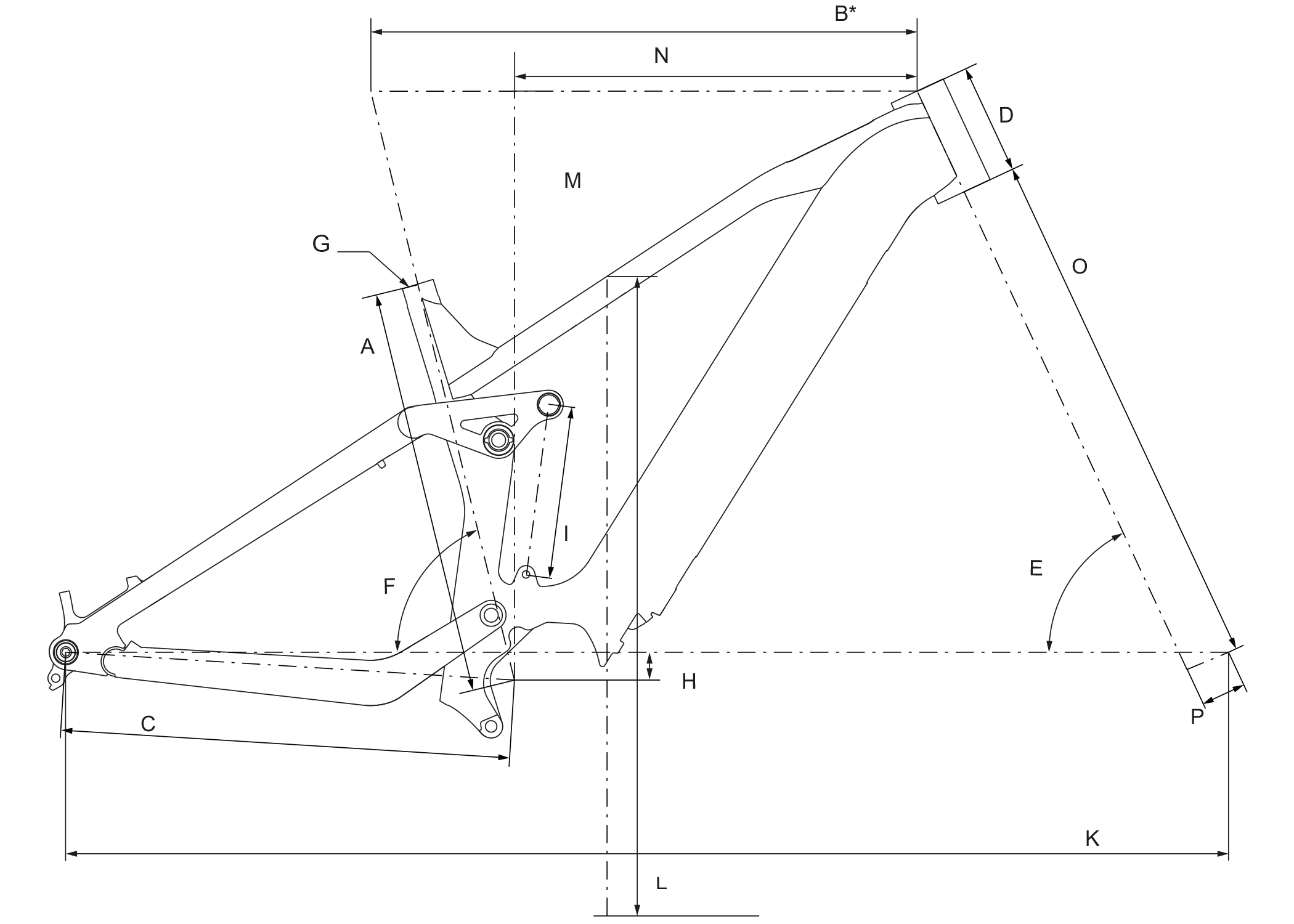

Geometry of Bergamont E-Horizon SUV FS 10
S M L XL
A BB center to top of seattube 415 mm 16,3 in 440 mm 17,3 in 470 mm 18,5 in 505 mm 19,9 in
B top tube parallel
B* top tube horizontal 590 mm 23,2 in 605 mm 23,8 in 630 mm 24,8 in 655 mm 25,8 in
C chainstay 485 mm 19,1 in 485 mm 19,1 in 485 mm 19,1 in 485 mm 19,1 in
D headtube length 120 mm 4,7 in 120 mm 4,7 in 130 mm 5,1 in 145 mm 5,7 in
E head angle 65,0 ° 65,0 ° 65,0 ° 65,0 °
F seat angle 75,0 ° 75,0 ° 75,0 ° 75,0 °
H BB offset 30 mm 1,2 in 30 mm 1,2 in 30 mm 1,2 in 30 mm 1,2 in
K wheelbase 1.247 mm 49,1 in 1.250 mm 49,2 in 1.278 mm 50,3 in 1.304 mm 51,3 in
L standover height 785 mm 30,9 in 785 mm 30,9 in 785 mm 30,9 in 785 mm 30,9 in
M stack 630 mm 24,8 in 636 mm 25,0 in 645 mm 25,4 in 659 mm 25,9 in
N reach 424 mm 16,7 in 438 mm 17,2 in 460 mm 18,1 in 482 mm 19,0 in
fork length 569 mm 22,4 in 569 mm 22,4 in 569 mm 22,4 in 569 mm 22,4 in
fork rake 44 mm 1,7 in 44 mm 1,7 in 44 mm 1,7 in 44 mm 1,7 in
G seatpost diameter 31,6 mm
I shock dimension 185x50 mm
headset dimension ZS56/ZS56
BB standard Bosch
hanger type UDH
max. rotor size 220 mm
