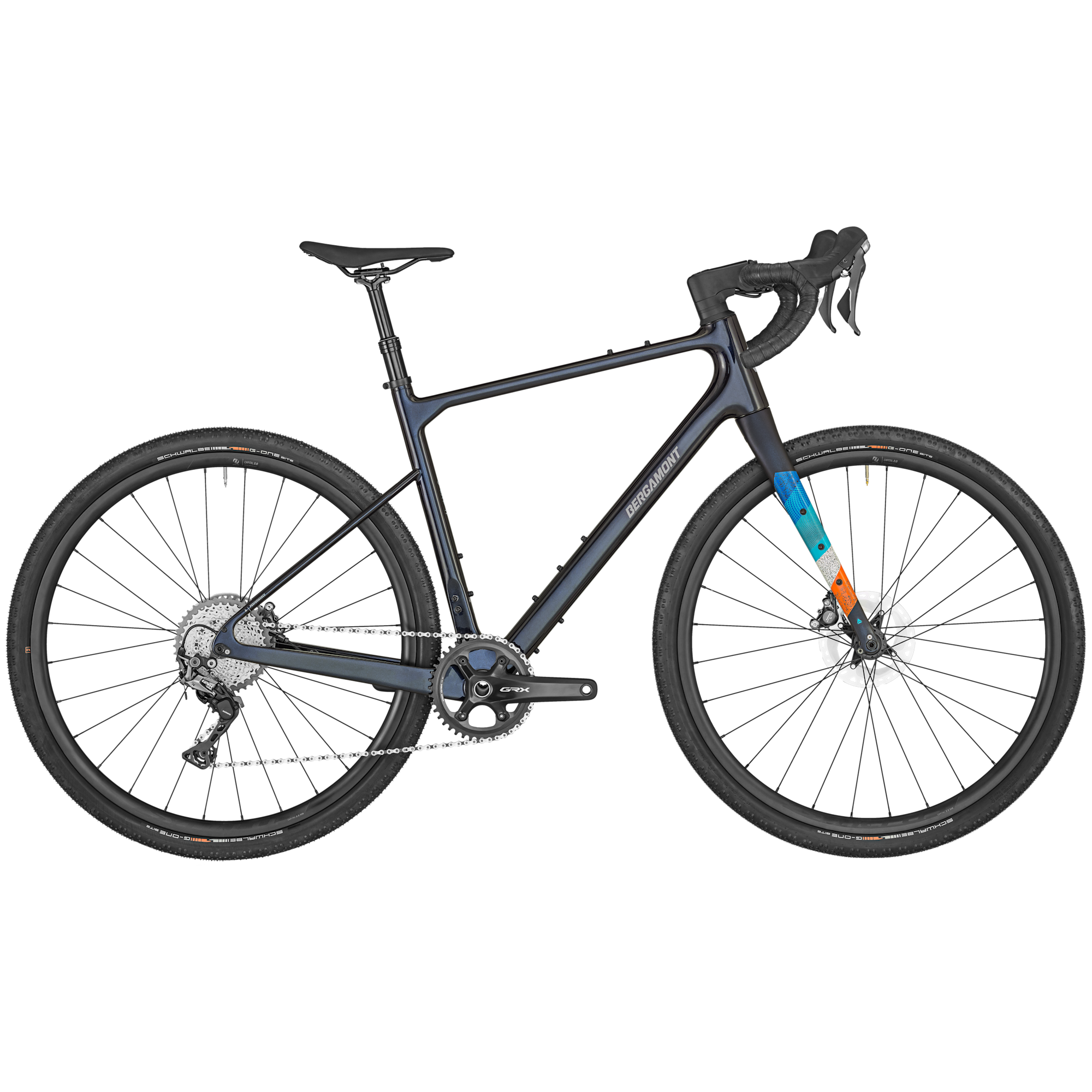

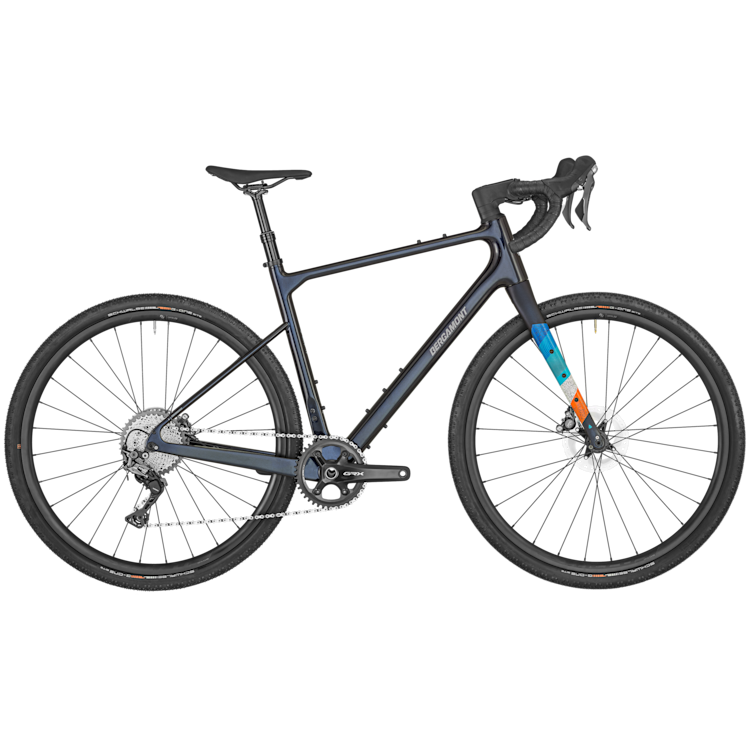

Bergamont Grandurance Elite
Artikel : 291086
Key Features
- 28", ultra lite HSC Carbon
- BGM Allroad Starrgabel, Carbon, Scheibenbremsaufnahme, Steckachse
- Shimano GRX, 1x11
- Shimano GRX, hydraulische Scheibenbremse
- Syncros Capital Felgen, BGM Naben
- Schwalbe G-One Bite Evo, folding, 45-622
1. Größe
3.399,00 €
SPEZIFIKATIONEN
-
All-Road reloaded: Eine perfekt durchdachte multifunktionale Carbon-Rahmenplattform, mit ausgewogener All-Road-Geometrie, maximaler Reifenfreiheit, zahlreichen Montagepunkten für Zubehör und stilbildendem Design. Ein echtes Juwel mit hochwertigen Shimano 1x11-Gang-Gravel-Komponenten.
Nutzungsbedingung 2 -

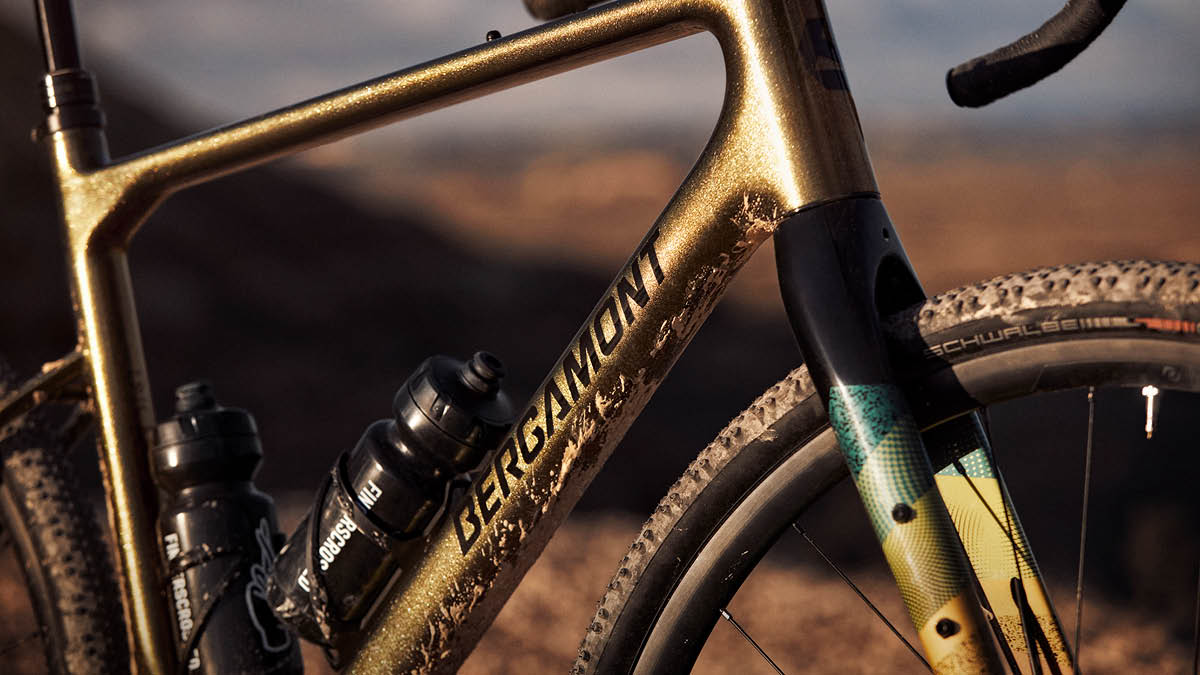

Rahmen
28", ultra lite HSC Carbon -
Gabel
BGM Allroad Carbon, Carbon Steuerrohr, Flatmount-Aufnahme, drei Befestigungsösen pro Seite, 12x100 mm Achse -
Schaltwerk
Shimano GRX, RD-RX812, Shadow Plus -
Schalthebel
Shimano GRX, ST-RX810, 1x11-fach, road STI-Schalthebel
-
Kurbelsatz

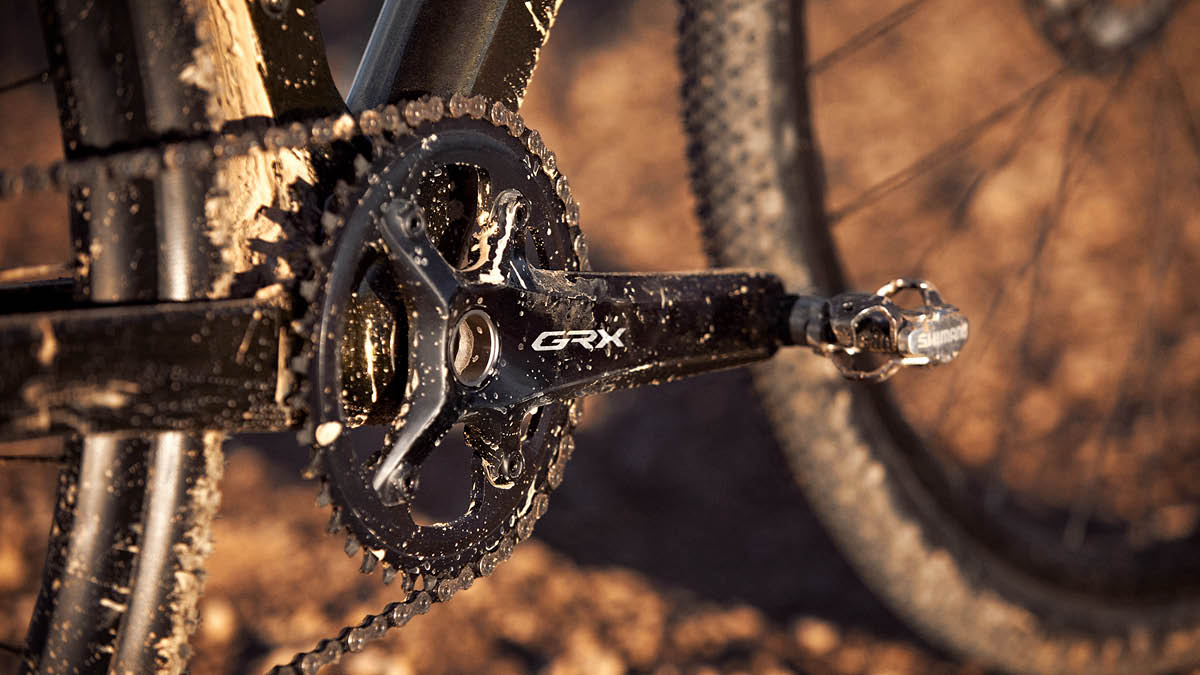

Shimano GRX, FC-RX810, 42t -
Innenlager
Shimano BB-RS500, Press-Fit -
Kette
KMC X11 -
Kassette
Shimano Deore XT, CS-M8000, 11-40t -
Bremshebel
Vorne: Shimano GRX, ST-RX810, Schalthebel steuert die Variostütze
Hinten: Shimano GRX, ST-RX810 -
Bremsen
Shimano GRX, BR-RX810, hydraulische Scheibenbremse -
Bremsscheibe
Shimano RT-MT800, 160 mm -

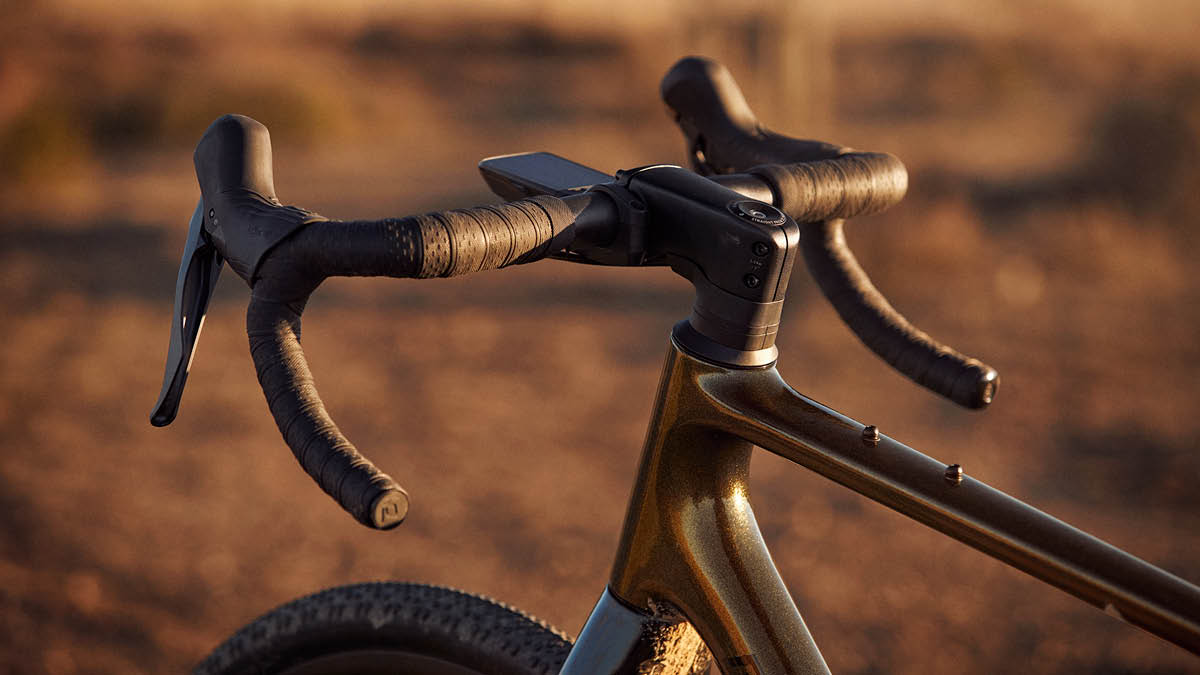

Lenker
Satori X-Race Aero, Flare: 16° -
Vorbau
Satori Viper, - 7° -

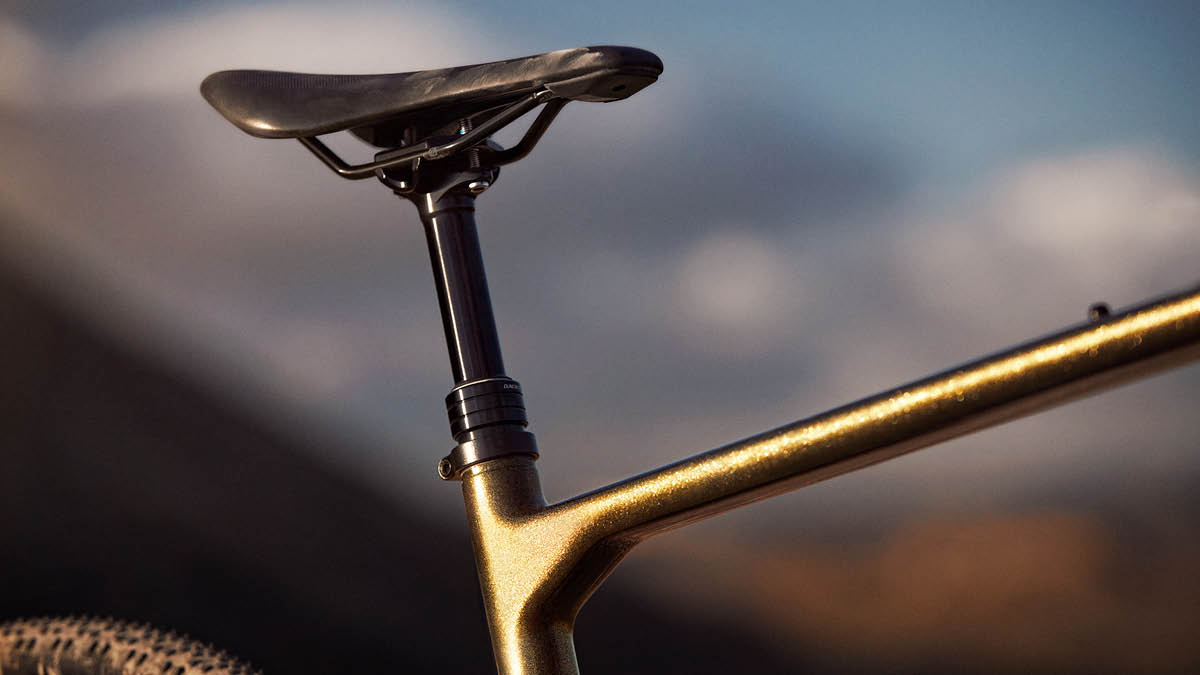

Sattelstütze
Syncros Duncan, Dropper Post, 100 mm (Größe 50 cm: 80 mm), Lenkerfernbedienung via STI Schalthebel -
Sattel
Syncros Tofino 2.5 -
Steuersatz
Acros ZS56, A-Headset, semi-integriert, Tapered -
Vorderradnabe
BGM Allroad, Centerlock, Disc, 12x100 mm Achse -
Hinterradnabe
BGM Allroad, Centerlock, Disc, 12x142 mm Achse -
Speichen
double butted, Edelstahl, schwarz -
Felgen
Syncros Capital 2.0, Disc -
Vorderreifen
Schwalbe G-One Bite Evo, faltbar, Tubeless-Easy, 45-622
Schlauch: Kenda SV28 -
Hinterreifen
Schwalbe G-One Bite Evo, faltbar, Tubeless-Easy, 45-622
Schlauch: Kenda SV28 -
Pedale
ohne -
Gewicht in Kg (ca.)
9,8 -
Farbe
shiny midnight blue -
Rahmengrößen
50/54/57/61 cm -
Griffe
BGM Race Grip-Tape, Antislip, Antishock -
Max. Systemgewicht
130,0 kg
Das zulässige Gesamtgewicht umfasst das Fahrrad inkl. Fahrer/in, Bekleidung und Gepäck.
Verwendung
No Radar Chart Available Currently
Geometrie

50 cm | 54 cm | 57 cm | 61 cm | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | BB center to top of seattube | 485 mm | 520 mm | 555 mm | 585 mm | ||||||||||||||
B | top tube parallel | 512 mm | 531 mm | 550 mm | 570 mm | ||||||||||||||
B* | top tube horizontal | 530 mm | 550 mm | 570 mm | 590 mm | ||||||||||||||
C | chainstay | 430 mm | 430 mm | 430 mm | 430 mm | ||||||||||||||
D | headtube length | 120 mm | 160 mm | 180 mm | 200 mm | ||||||||||||||
E | head angle | 70,0 ° | 70,0 ° | 70,0 ° | 70,0 ° | ||||||||||||||
F | seat angle | 75,0 ° | 75,0 ° | 75,0 ° | 75,0 ° | ||||||||||||||
H | BB offset | -70 mm | -70 mm | -70 mm | -70 mm | ||||||||||||||
K | wheelbase | 1.036 mm | 1.059 mm | 1.081 mm | 1.103 mm | ||||||||||||||
L | standover height | 775 mm | 810 mm | 837 mm | 862 mm | ||||||||||||||
M | stack | 560 mm | 598 mm | 616 mm | 635 mm | ||||||||||||||
N | reach | 380 mm | 390 mm | 405 mm | 420 mm | ||||||||||||||
fork length | 420 mm | 420 mm | 420 mm | 420 mm | |||||||||||||||
fork rake | 50 mm | 50 mm | 50 mm | 50 mm |
G | seatpost diameter | 31,6 mm |
I | shock dimension | |
headset dimension | ZS56/ZS56 | |
BB standard | BB86 | |
hanger type | BGM-H042A | |
max. rotor size | 160 mm |
