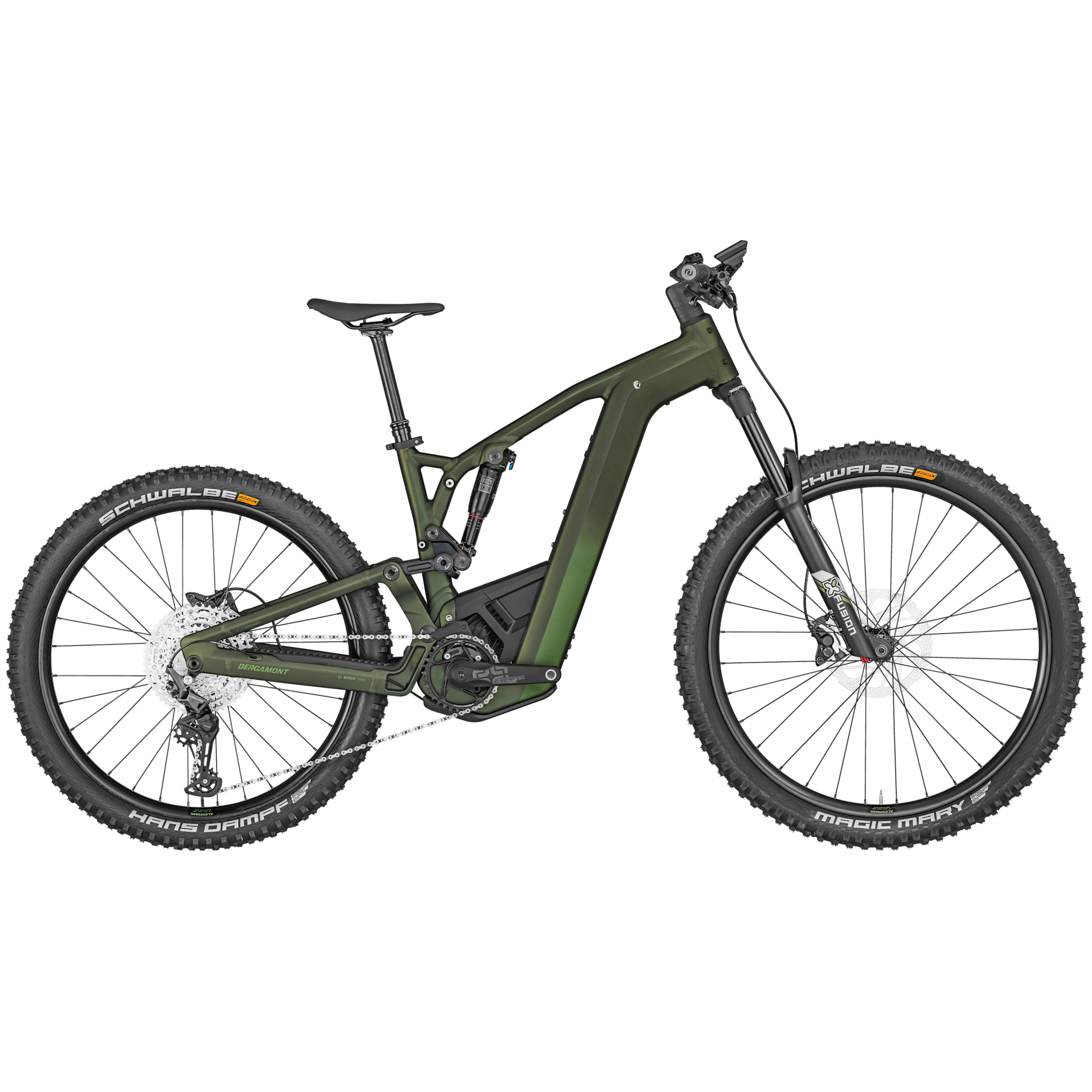

Bergamont E-Trailster 150 Expert

Model : 291016

Bergamont E-Trailster 150 Expert

Key Features

  • 29/27.5", ultra lite AL-6061 tubing, PowerTube battery, 140 mm rear travel
  • X-Fusion Trace RC, 150 mm, Thru-axle
  • RockShox Deluxe Select Plus RT Air, 140 mm
  • Shimano Deore, 1x12
  • Bosch BES3 Performance Line CX, 625 Wh battery
  • Shimano BR-MT420, hydraulic 4-piston disc
  • Alex EXR30 rims, Shimano MT400 hubs
  • Schwalbe Magic Mary Evo, 29x2.60" // Hans Dampf Evo, 27.5x2.60"

1. Size

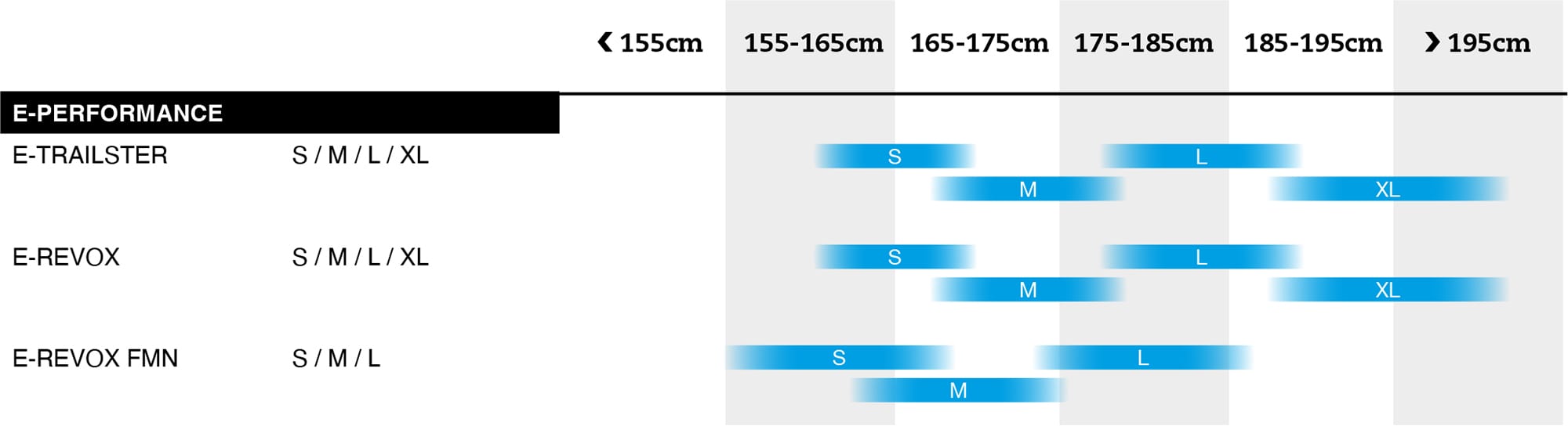

Size chart
Find a dealer
SPECIFICATIONS
  • Unlimited, thanks to a newly developed full suspension chassis with 150/140 mm travel. Unbound, with a powerful high-end Performance Line CX Bosch drive unit and 625 Wh PowerTube battery. Unrestricted, with a maximum system weight of 135 kg.

    condition of usage 3

  • Frame

    29/27.5", ultra lite AL-6061 tubing, PowerTube battery, 140 mm rear travel

  • Fork

    X-Fusion Trace 36 RC, 150 mm, 15x110 mm axle

  • Rear Shock

    Rock Shox Deluxe Select Plus RT Air, length x stroke 205x65, hardware: body bearing mount eyelet

  • Drive Unit

    Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h

  • Battery

    Bosch PowerTube, 36 V Li Ion, 625 Wh

  • Display

    Bosch LED Remote with Kiox 300 display

  • Charger

    Bosch Standard Charger, 4A

  • Rear Derailleur

    Shimano Deore, RD-M6100, Shadow Plus

  • Shifters

    Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter

  • Crankset

    e*thirteen e*spec Plus crank / e*spec Base chainring, 34t, 165 mm

  • BB-Set

    Bosch, Isis

  • Chain

    KMC e12S

  • Cassette

    Shimano Deore, CS-M6100, 10-51t

  • Brake Levers

    Shimano BL-MT401, hydraulic disc brake

  • Brakes

    Shimano BR-MT420, hydraulic disc brake, 4-piston

  • Rotor

    Shimano SM-RT30, 203 mm

  • Handlebar

    Syncros Hixon 2.0, riserbar, rise: 12 mm, width: 780 mm

  • H'stem

    Satori Viper, 0°

  • Seatpost

    Syncros Duncan 2.5, dropper post, 150 mm (frame size "S": 125 mm), remote

  • Seat

    Syncros Tofino 2.5

  • Headset

    Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock

  • Hub (Front)

    Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle

  • Hub (Rear)

    Shimano FH-MT410-B, centerlock, disc, 12x148 mm axle

  • Spokes

    Sapim Leader

  • Rims

    Alex EXR30, disc, eyelets, 29" / Alex EXR30, disc, eyelets, 27.5"

  • Front Tire

    Schwalbe Magic Mary Evo, folding, Addix Soft, 29x2.60"
    Tube: Schwalbe SV19FB Light

  • Rear Tire

    Schwalbe Hans Dampf Evo, folding, Addix Soft, 27.5x2.60"
    Tube: Schwalbe SV19FB Light

  • Pedals

    none

  • Approx weight in KG

    27,4

  • Color

    matt khaki green

  • Frame size

    S/M/L/XL

  • Grips

    Syncros E-MTB

  • Max. System Weight

    135,0 kg
    The overall weight includes the bike, the rider, the equipment and possible additional luggage.
Use
No Radar Chart Available Currently

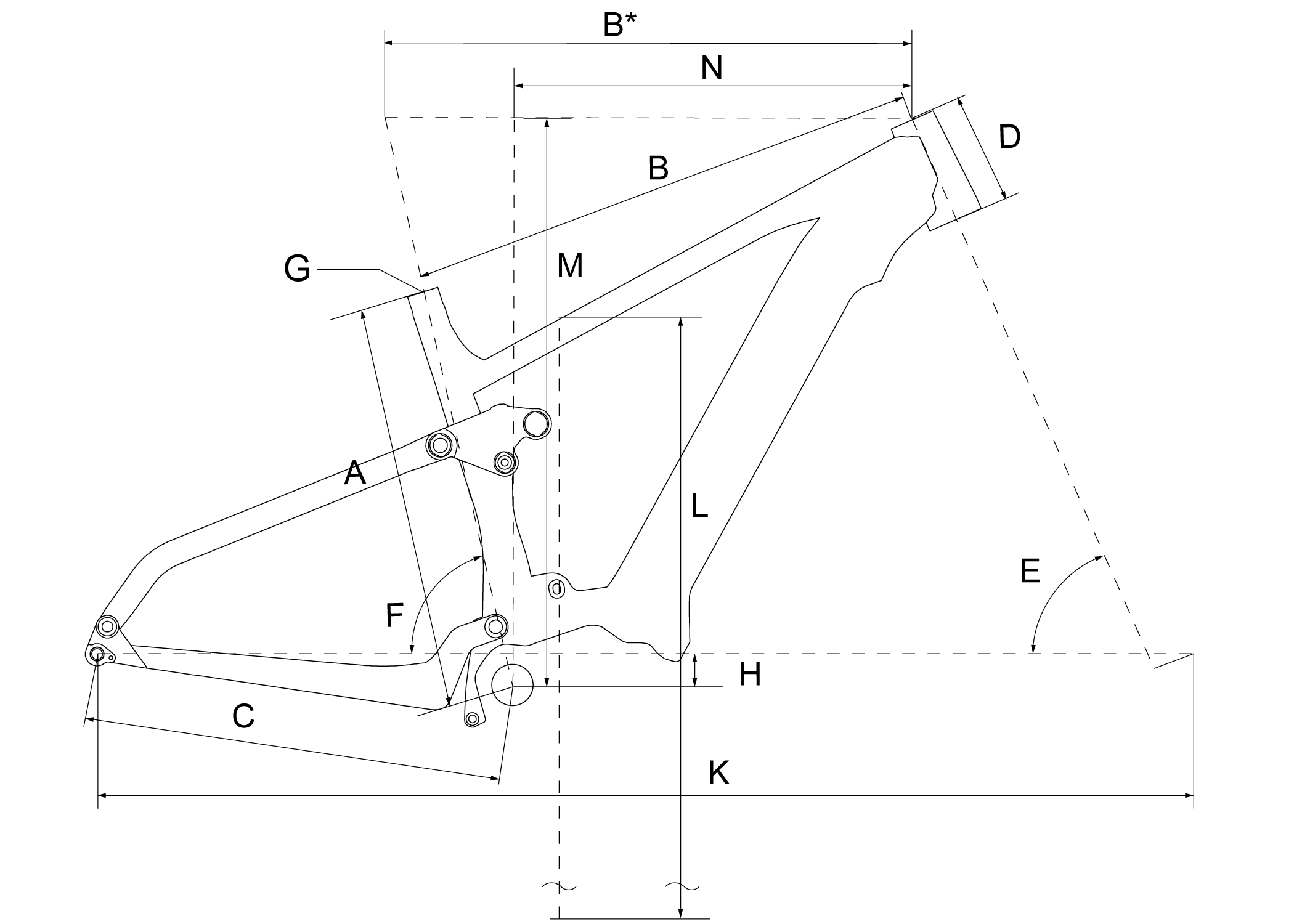

Geometry

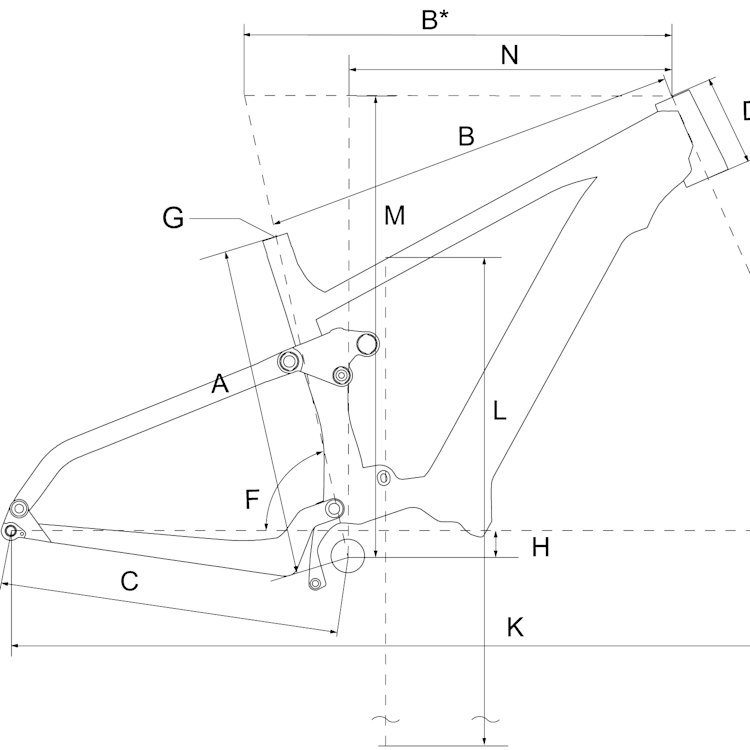

Geometry of Bergamont E-Trailster 150 Expert
