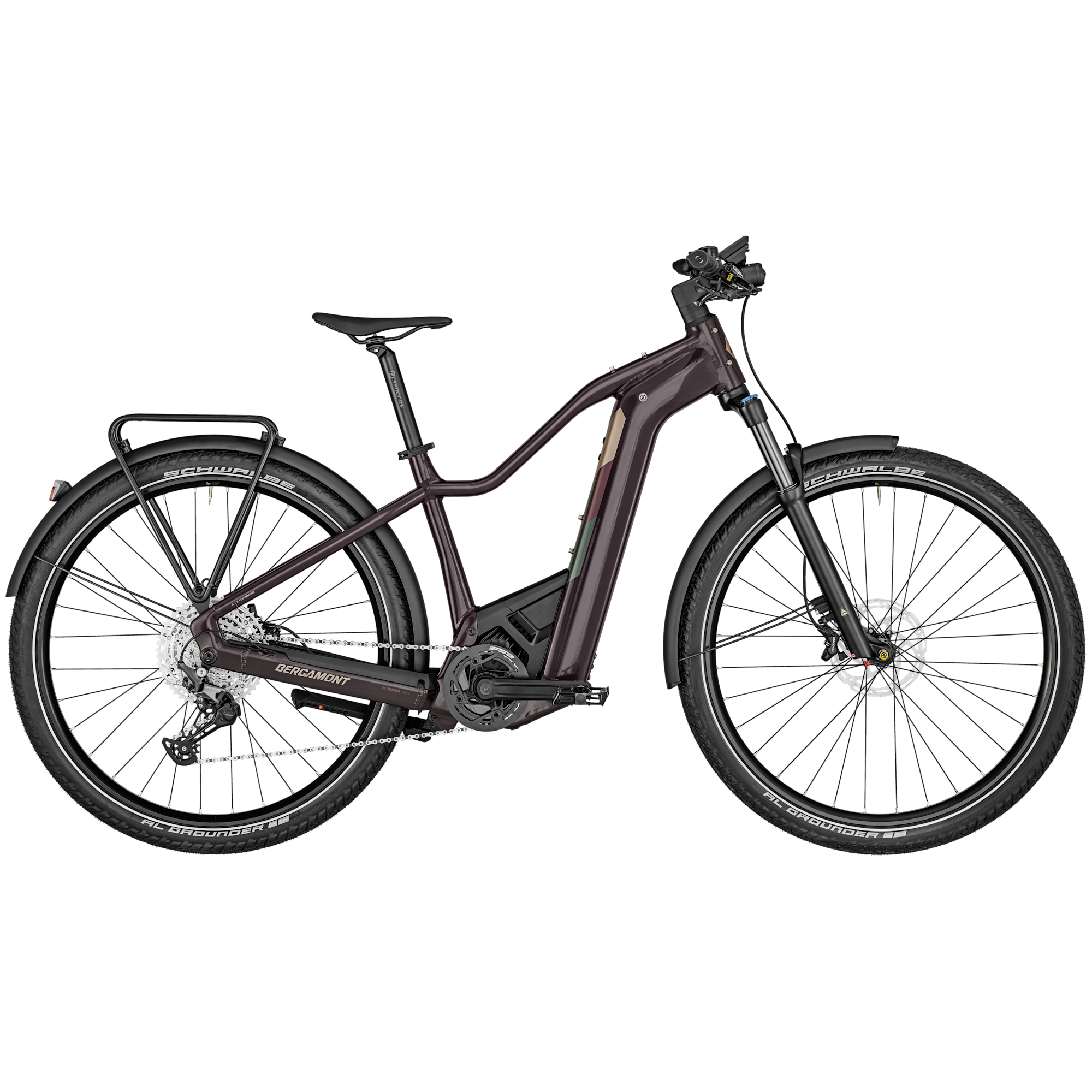

Bergamont E-Revox Expert FMN EQ

Model : 291022

Bergamont E-Revox Expert FMN EQ

Key Features

  • 29", super lite AL-6061 tubing, BES III, PowerTube battery
  • Suntour XCR 34 Air, 120 mm, Thru-axle
  • Shimano Deore, 1x12
  • Bosch BES3 Performance Line CX, 750 Wh battery
  • Tektro, hydraulic 4-piston disc
  • Cross X18 rims, Shimano MT400 hubs
  • Schwalbe Al Grounder, 29x2.35"
  • Litemove 110 Lux LED/ Herrmans Mini LED

1. Size

Size chart
Find a dealer
SPECIFICATIONS
  • Ready for adventure! With the highest level of integration of the latest Bosch Performance Line CX drive unit and 750 Wh PowerTube battery technology, paired with robust components, you are perfectly equipped for on- or off-road rides any time of day or year.

    condition of usage 3

  • Frame

    29", super lite AL-6061 tubing, BES III, PowerTube battery

  • Fork

    Suntour XCR34 LOR Air, 120 mm, rebound adjust, 15x110 mm axle

  • Drive Unit

    Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h

  • Battery

    Bosch PowerTube, 36 V Li Ion, 750 Wh

  • Display

    Bosch LED Remote with Kiox 300 display

  • Charger

    Bosch Standard Charger, 4A

  • Rear Derailleur

    Shimano Deore, RD-M6100, Shadow Plus

  • Shifters

    Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter

  • Crankset

    FSA CK-320, 34t, 170 mm

  • BB-Set

    Bosch, Isis

  • Chain

    KMC e12S

  • Cassette

    Shimano Deore, CS-M6100, 10-51t

  • Brake Levers

    Tektro HD-M745, hydraulic disc brake

  • Brakes

    Tektro HD-M745, hydraulic disc brake, 4-piston

  • Rotor

    Tektro TR180-35, 180 mm

  • Handlebar

    Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm

  • H'stem

    Satori Viper, 0°

  • Seatpost

    Syncros M3.0

  • Seat

    Syncros Savona 2.5

  • Headset

    Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock

  • Hub (Front)

    Shimano HB-MT410-B, centerlock, disc, 15x110 mm axle

  • Hub (Rear)

    Shimano FH-MT410-B, centerlock, disc, 12x148 mm axle

  • Spokes

    stainless, black

  • Rims

    Cross X18, disc, eyelets, width: 30 mm

  • Front Tire

    Schwalbe Al Grounder, 29x2.35"
    Tube: Schwalbe SV19FB Light

  • Rear Tire

    Schwalbe Al Grounder, 29x2.35"
    Tube: Schwalbe SV19FB Light

  • Lights

    Front: Litemove SE, 110 Lux, LED
    Rear: Herrmans H-Trace Mini, LED

  • Rack

    Racktime / BGM E-revox carrier, SnapIt 2.0 System

  • Pedals

    MTB alloy

  • Accessories

    Kickstand: Syncros

  • Approx weight in KG

    27,8

  • Color

    shiny rosso black

  • Fender

    Curana Apollo, with stainless stays

  • Frame size

    S/M/L

  • Grips

    Syncros E-MTB

  • Max. System Weight

    135,0 kg
    The overall weight includes the bike, the rider, the equipment and possible additional luggage.
Use
No Radar Chart Available Currently

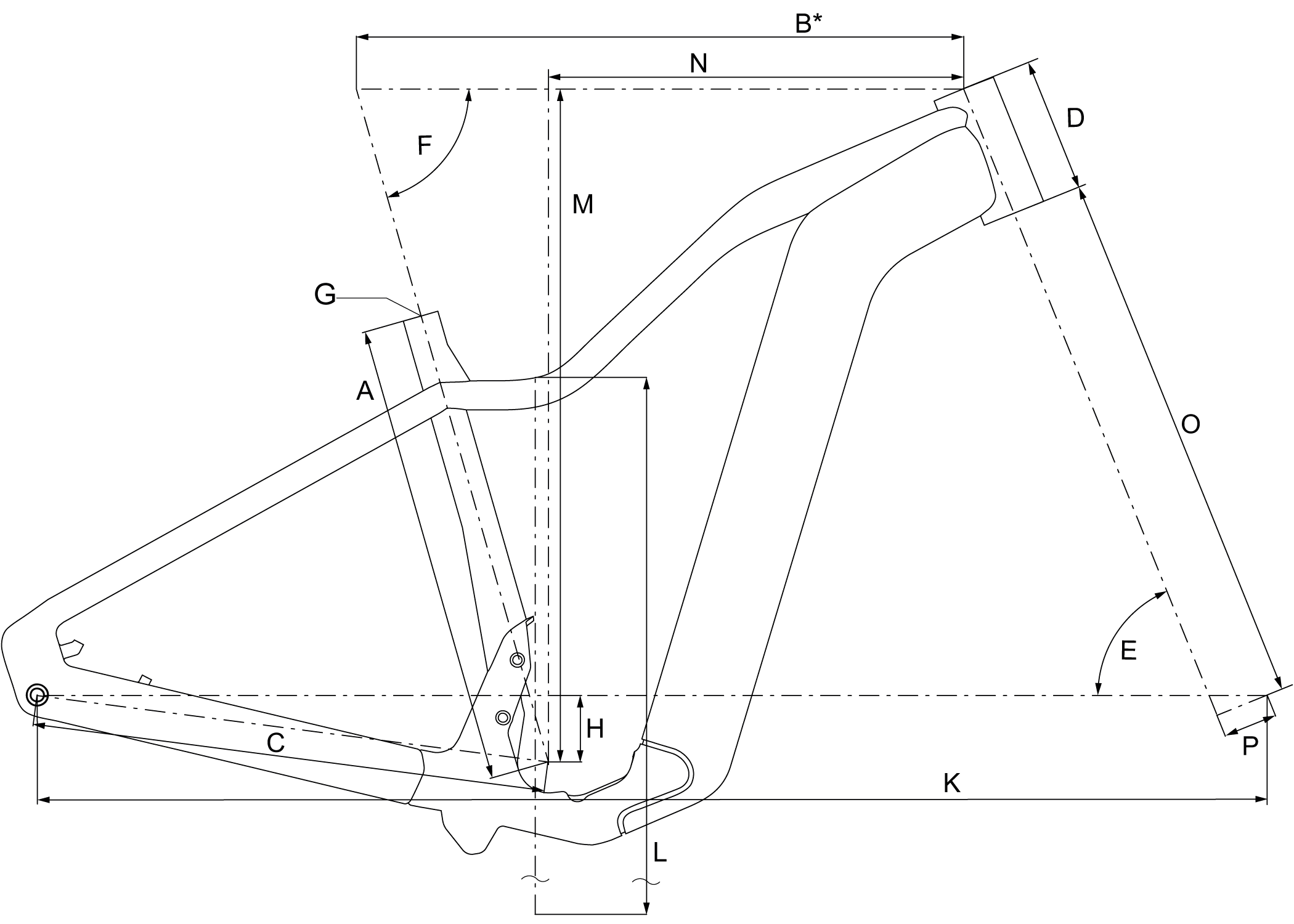

Geometry
Geometry of Bergamont E-Revox Expert FMN EQ
