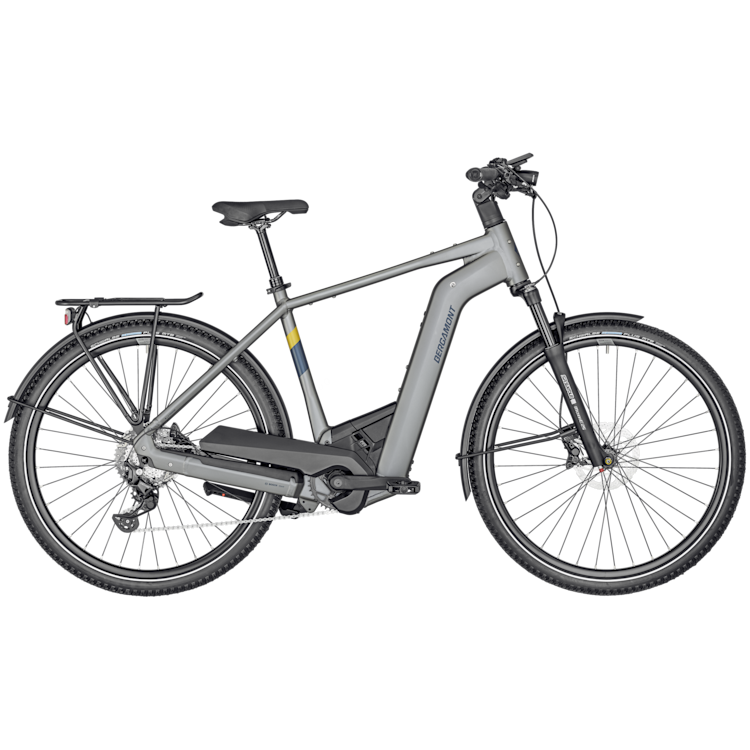

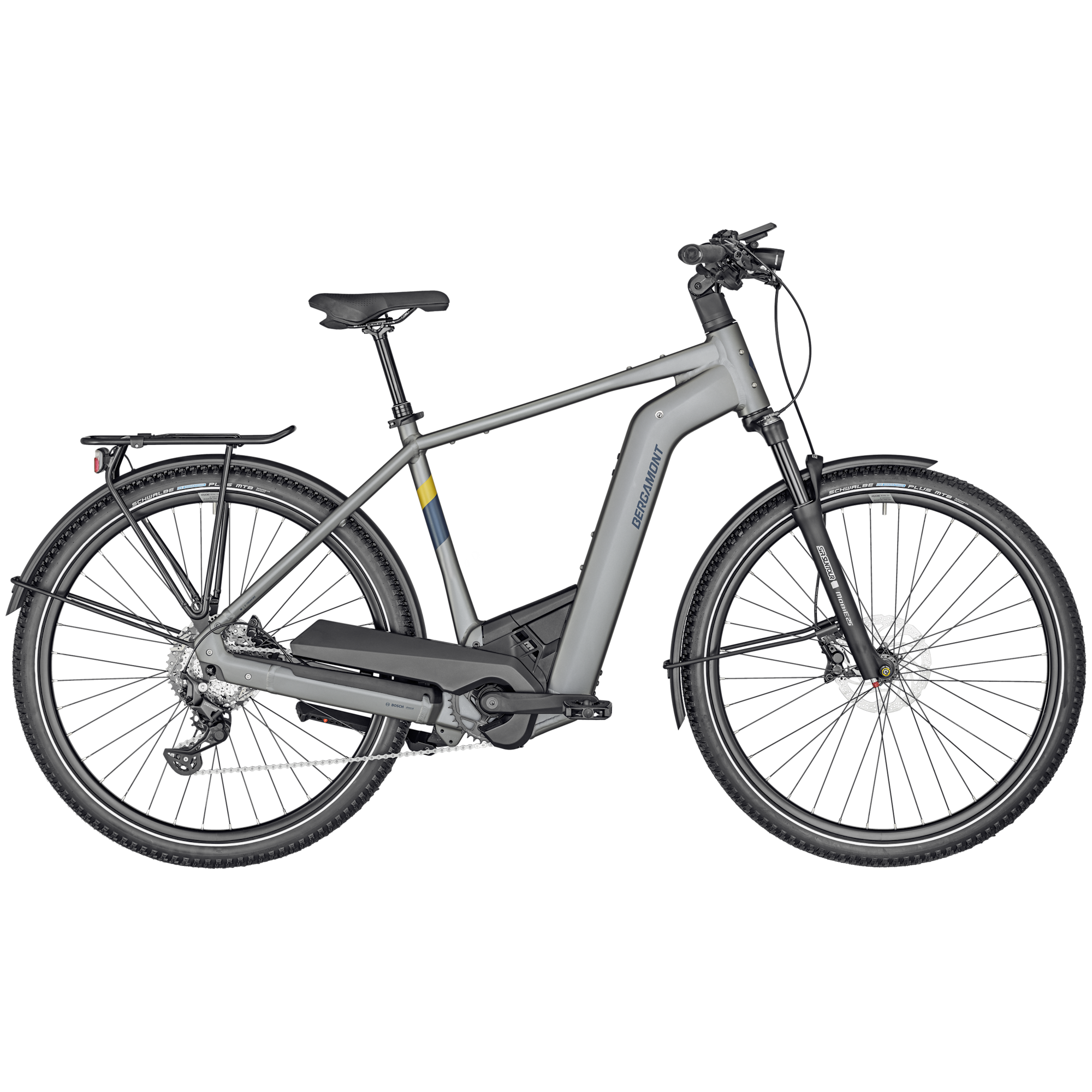

Bergamont E-Horizon Premium SUV Gent

Model : 290953

Bergamont E-Horizon Premium SUV Gent

Key Features

  • 28", super lite AL-6061 tubing, BES III, PowerTube battery
  • Suntour Mobie 25, 100 mm, Thru-axle
  • Shimano Deore Linkglide, 1x10
  • Bosch BES3 Performance Line CX, 750 Wh battery
  • Shimano BR-MT420, hydraulic 4-piston disc
  • Ryde Rival 23 rims, Shimano hubs
  • Schwalbe Marathon Plus MTB, Reflex, 54-622
  • B&M Myc LED, 50 Lux / B&M Toplight LED with brake light

1. Size

Size chart
Find a dealer
SPECIFICATIONS
  • Think bigger, ride better: larger battery, wider tires, perfect integration, unapologetic design - with the E-HORIZON PREMIUM SUV you are riding an omnipotent bike with high-end technology and modern look, perfectly at home in any terrain.

    condition of usage 2

  • Frame

    28", super lite AL-6061 tubing, BES III, PowerTube battery

  • Fork

    Suntour Mobie 25, RLR DS, 100 mm, 15x100 mm axle

  • Drive Unit

    Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h

  • Battery

    Bosch PowerTube, 36 V Li Ion, 750 Wh

  • Display

    Bosch LED Remote with Intuvia 100 display

  • Charger

    Bosch Standard Charger, 4A

  • Rear Derailleur

    Shimano Deore Linkglide, RD-M5130, Shadow Plus

  • Shifters

    Shimano Deore Linkglide, SL-M5130, 1x10-speed, rapidfire plus-shifter

  • Crankset

    FSA CK-745, 38t

  • BB-Set

    Bosch, Isis

  • Chain

    Shimano Linkglide, CN-LG500

  • Cassette

    Shimano Linkglide, CS-LG600-10, 11-43t

  • Brake Levers

    Shimano BL-MT402, hydraulic disc brake

  • Brakes

    Shimano BR-MT420, hydraulic disc brake, 4-piston

  • Rotor

    Shimano SM-RT30, 180 mm

  • Handlebar

    BGM Pro, riserbar, backsweep: 15°, rise: 5 mm

  • H'stem

    Satori Python, adjustable

  • Seatpost

    Syncros Duncan, dropper post, 120 mm travel, remote

  • Seat

    Syncros Capilano Trekking Gel

  • Headset

    Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing

  • Hub (Front)

    Shimano HB-MT400, centerlock, disc, 15x100 mm axle

  • Hub (Rear)

    Shimano, centerlock, disc, quick release

  • Spokes

    Sapim Leader

  • Rims

    Ryde Rival 23 disc, eyelets

  • Front Tire

    Schwalbe Marathon Plus MTB, Smart Dual Guard, reflective stripe, 54-622
    Tube: Schwalbe AV19

  • Rear Tire

    Schwalbe Marathon Plus MTB, Smart Dual Guard, reflective stripe, 54-622
    Tube: Schwalbe AV19

  • Lights

    Front: B&M Myc, 50 Lux, LED
    Rear: B&M Toplight Line brex, LED, with brake light

  • Rack

    Racktime / BGM Trekking Pro, Snapit 2.0 System, integrated fender mount

  • Pedals

    Marwi SP-890 matt Sandblock

  • Accessories

    Kickstand: Syncros

  • Approx weight in KG

    28,8

  • Color

    matt chrome silver

  • Fender

    Racktime Alumee

  • Frame size

    48/52/56/60/64 cm

  • Grips

    BGM Comfort, Ergo, double density, clamp version

  • Max. System Weight

    160,0 kg
    The overall weight includes the bike, the rider, the equipment and possible additional luggage.
