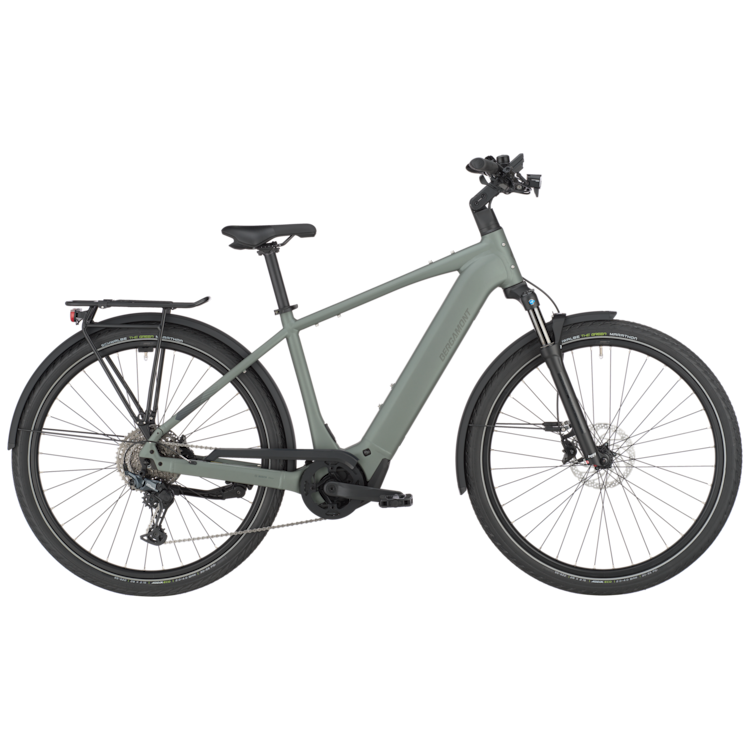

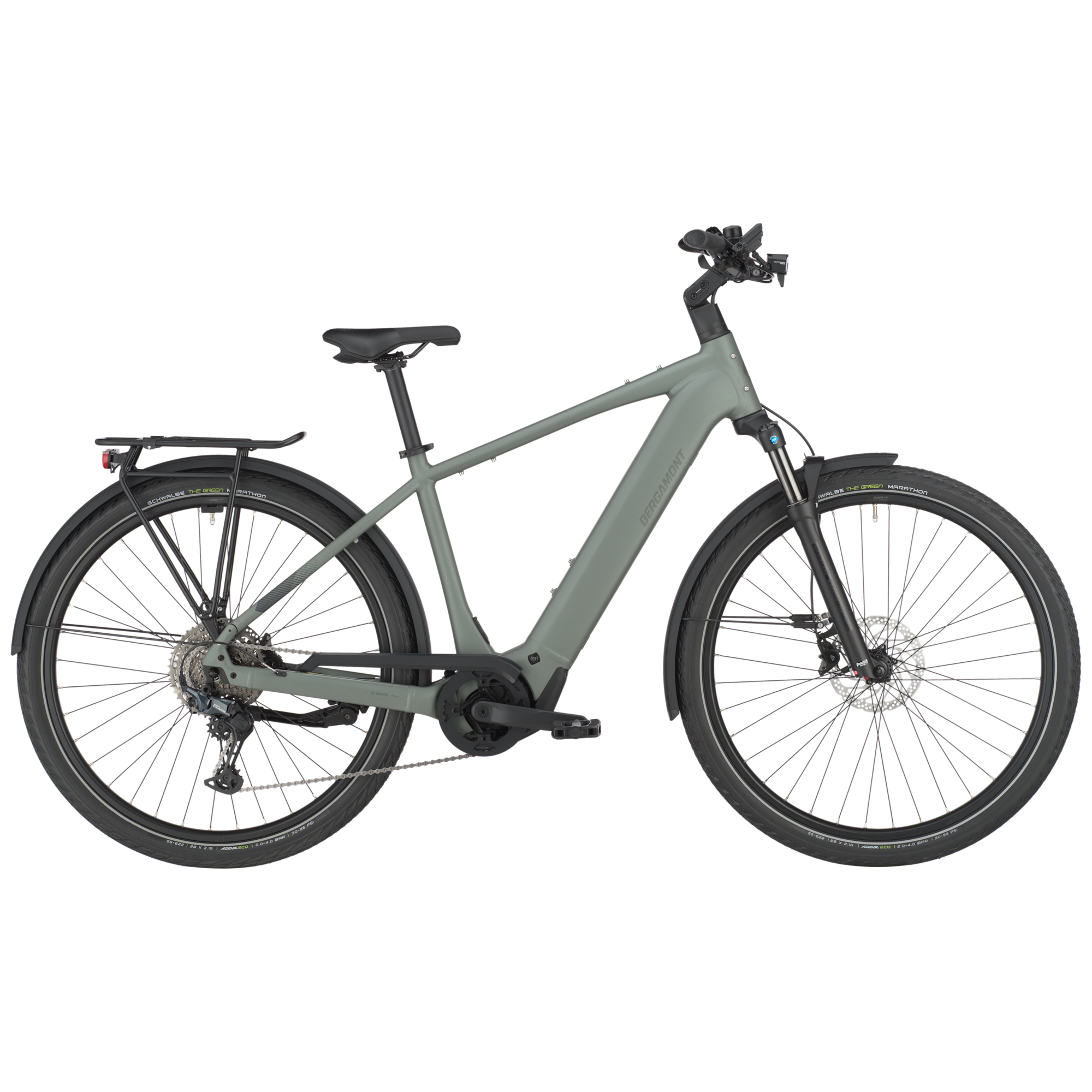

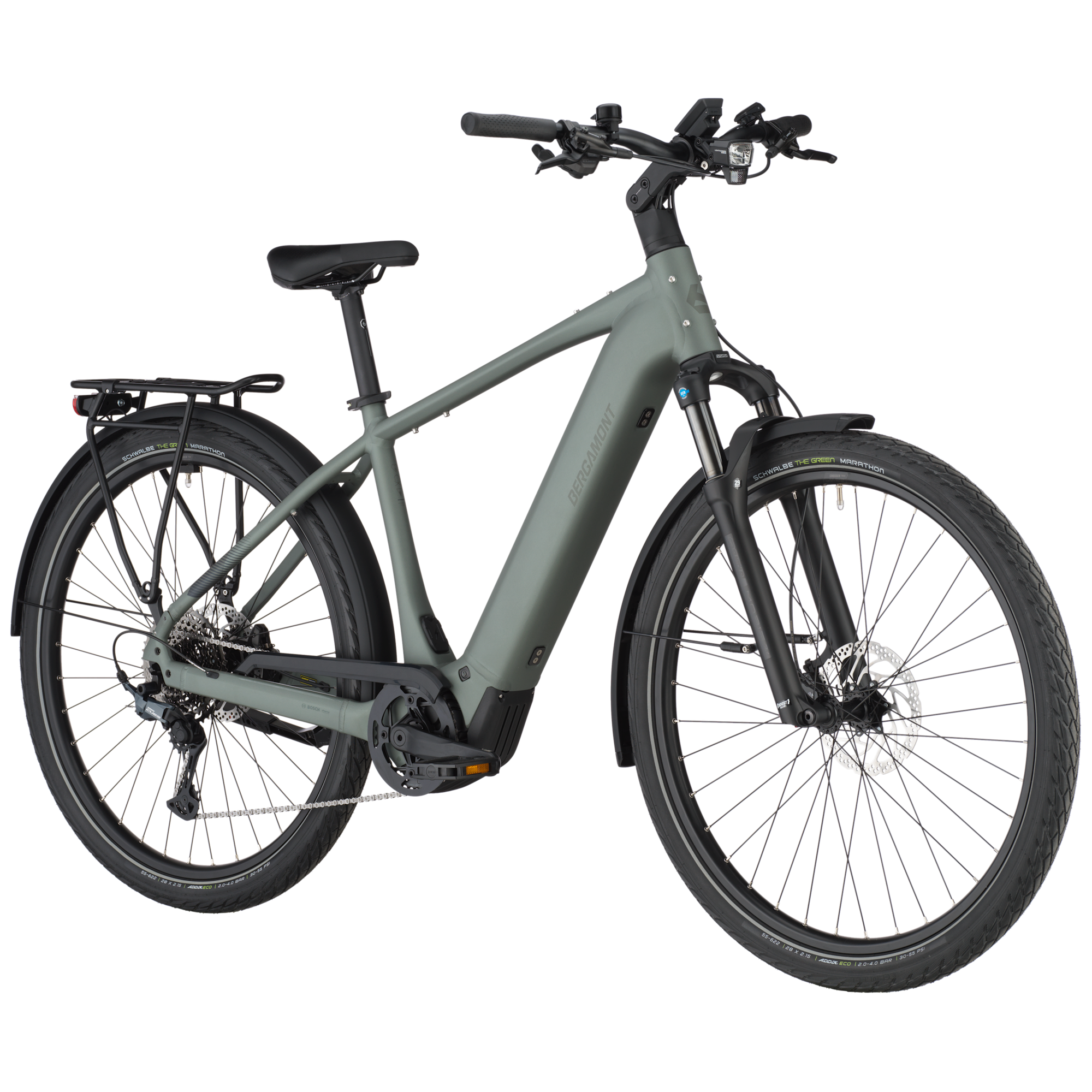

Bergamont E-Horizon Sport 10
Model : 423604
Key Features
- Super lightweight aluminum frame
- Suntour suspension fork with 100 mm travel
- Shimano Cues 1x11-speed drivetrain
- Bosch Smart System with powerful Performance Line CX motor
- Shimano hydraulic disc brakes
- 28" Schwalbe Marathon tires
- Child seat approved rear carrier, 160 kg max. system weight
- LED lighting system front and rear with brake light function
1. Color : highland grey
2. Size
£4,199.00
-
The E-Horizon Sport is a fully equipped e-trekking bike with perfectly integrated components. It includes features such as LED lights with a rear brake light function that increase rider safety in urban environments. The rear carrier is approved for 27 kg and child transportation in combination with a Thule Yepp 2 Maxi seat. The classic derailleur drivetrain for efficient pedaling and shifting is a lightweight and proven concept, and the hydraulic disc brakes offer superior braking power and modulation even in adverse weather conditions.
The Bosch Performance Line CX electric drive system offers powerful and long-lasting support, giving you the freedom to explore beyond your usual routes.
The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging, while the battery cover remains on the bike to protect the empty battery bay from the elements. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.
condition of usage 2 -
Frame
28", super lite AL-6061 tubing, PowerTube battery -
Fork
Suntour Mobie 34 Air, 100 mm, 15x110 mm axle -
Drive Unit
Bosch Smart System, Performance Line CX (BDU384Y), 250 W, 36 V, max. 25 km/h -
Battery
Bosch PowerTube, 36 V Li Ion, 800 Wh
-
Display
Bosch Kiox 300 with LED Remote -
Charger
Bosch Standard Charger, 4A -
Rear Derailleur
Shimano Cues, RD-U8000, Shadow Plus -
Shifters
Shimano Cues, SL-U8000, 1x11-speed, rapidfire plus-shifter -
Crankset
FSA CK-745, 170 mm, 38t -
BB-Set
Bosch, Isis -
Chain
Shimano Linkglide, CN-LG500 -
Cassette
Shimano Cues, CS-LG400-11, 11-45t -
Brake Levers
Shimano BL-MT402, hydraulic disc brake -
Brakes
Shimano BR-MT410, hydraulic disc brake -
Rotor
Shimano SM-RT30, 180 mm -
Handlebar
Syncros 3.0, riserbar, backsweep: 15°, rise: 12 mm -
H'stem
Satori Python, adjustable -
Seatpost
BGM Pro -
Seat
Syncros Capilano Trekking -
Headset
Acros, A-Headset, semi-integrated, tapered, with integrated cable routing -
Hub (Front)
Shimano HB-TC500-B, centerlock, disc, 15x110 mm axle -
Hub (Rear)
Shimano FH-QC400, centerlock, disc, quick release -
Spokes
stainless, black -
Rims
BGM Pro X17, disc, eyelets -
Front Tire
Schwalbe Marathon, Performance, GreenGuard, reflective stripe, 55-622
Tube: Schwalbe AV19B Light -
Rear Tire
Schwalbe Marathon, Performance, GreenGuard, reflective stripe, 55-622
Tube: Schwalbe AV19B Light -
Lights
Front: 100 Lux, LED
Rear: Axa Juno, LED, with brake light function -
Rack
Racktime / BGM Trekking Pro, Snapit 2.0 System -
Pedals
Marwi SP-827, sandblock -
Accessories
Kickstand: Syncros U-mount -
Approx weight in KG
28,2 -
Fender
Curana Orbit, with stainless stays -
Chain cover
Integrated in motor cover -
Grips
Syncros Urban, Ergo, double density, lock-on -
Max. System Weight
160,0 kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.
Child Seat Allowed
Please refer to the chapter "intended use of your bike" in the general manual for details.
Trailer Allowed
Please refer to the chapter "intended use of your bike" in the general manual for details.
